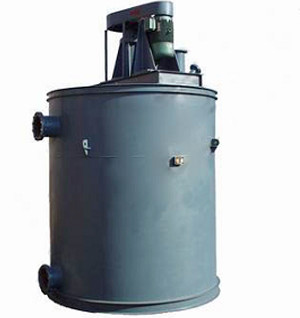

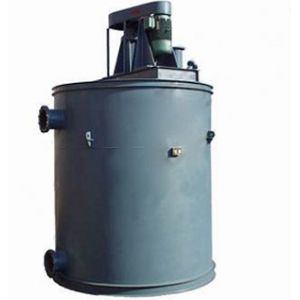

Mixing Drum Ore Dressing Equipment Feed Size Less Than One Mm

1. Basic introduction of mixing tank

The mixing tank is a necessary equipment for the rotation of the impeller driven by the motor V-belt to fully mix the medicine and the pulp evenly, and to increase the reaction time of the medicine and strengthen the quality of the medicine reaction. Stir.

The mixing tank is suitable for all kinds of metal ores. It is mainly used for stirring before flotation, so that the agent and the pulp can be fully mixed, and it can also be used for the stirring of other non-metallic minerals. It is used in a concentration of not more than 30% (by weight) of fixed ingredients with a particle size of less than 1 mm. Its form is a flat-bottomed barrel-shaped radial circulation spiral impeller mechanical stirring type.

2. Ore Dressing Equipment technical parameters

3. Instructions for use of mixing tank

(1) Tighten the bolts of the pump body before use, check whether the rotation of the pump shaft substitute wheel is flexible, and then start the mixer, and the others are the same as the flotation machine;

(2) Wearing parts: impeller, stator;

(3) The mixer and automatic feeder must be cleaned inside, especially in winter, which can prolong the life.

4. Features of mixing tank

(1) The structure is compact, the sealing is good, and the ash blocking plate is set at the feeding port to prevent the water mist from being reversed;

(2) The stirring is uniform, the stirring blade is fan-shaped, and the contact area with the medium is large during stirring;

(3) The nozzles are set in multiple rows, and the water volume is uniform and adjustable;

(4) The residual ash rate is low, and the setting of the watershed at the bottom of the box ensures that there is no dead angle in the equipment;

(5) The mining mixing drum has advanced performance, stable product quality, uniform mixing and rapid discharge.

5. Ore Dressing Equipment photo explanation

Luoyang Zhongtai Industries Co., Ltd. The company was founded in 1981 and finished joint stock reform in 2005. There are eight subsidiaries and it's an independent legal entity with the qualifications of operating import & export trade.

With a garden-like industrial park and modern standard plant covering 80,000 square meters, ZTIC possesses advanced equipments, technologies and detecting methods. After more than 30 years development, the company has developed into a collectivized one with product designing, manufacture, installation and technical services as a whole. The products comprise all the equipments used in mining, cement, metallurgy, construction as well as the related accessories with high power reducer and large-sized castings & forgings, etc.

ZTIC has acquired ISO 9001:2008 Certification of conformity of Management System Certification, Mine Product Safety Authentication, Recognition for BV Mode Ⅱ Survey Scheme in France, Mining Electrical Equipment KY Certification, etc.
The company has also acquired "Fully Quality Management Achievement Award", "Top 50 Enterprises", "Henan Outstanding Innovative Enterprise” and “The Most Powerful Enterprises of Henan" in 2010.

Quality product performance and good reputation, our products have been exported to mnay countries and regions in the world, including: Russia, Serbia, Australia, Mongolia, Indonesia, Bangladesh and other countries, the products are subject to a great welcome and praise.
