Large Autogenous Mill And Sag Mill Ore Grinding Mill For Iron Ore

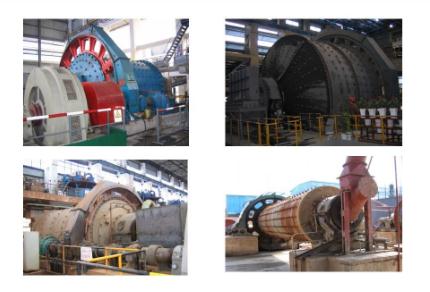

1. AG Mill | SAG Mill of ore grinding mill products is introduced

Luo mine AG Mill | semi autogenous grinding machine typical products: complete cooperation with Fuller company to make 1992 Ф 5.5 x 8.5 m the overflow type ball mill; With the diameter of 5.03×6.4m export ball mill completed in 1993; In 2001, the diameter of 4.27×6.1m export large mine mill was developed. In 2004, we cooperated with Metso to manufacture the largest semi-autogenous mill with Φ8.53×3.96. In August 2005, it was contracted by Jinchuan Group with the diameter of 5.5×8.5m overflow ball mill. In May 2006, the company contracted a Φ5.49×8.8m overflow ball mill for Anshan Steel Group. In 2006, it cooperated with Meizuo to manufacture Kunsteel Dahongshan autogenous mill. In July 2006 for Ling Steel Group contracted Φ8.0 ×2.8 m automill.

2. AG Mill | semi autogenous of ore grinding mill typical case:

In the technical transformation project of expanding mining and Beneficiation production scale of Dexing Copper Mine, the newly built 22,500 t/d semi-self-grinding mill of Dashan Concentrator, the semi-self-grinding mill and the ball mill used in the ball grinding system have been completed by Luo Mine. The technical transformation project of expanding mining, production and beneficiation scale of Dexing Copper Mine undertaken by Luo Mine is based on the existing mining and beneficiation capacity of 100,000 t/d. An additional capacity of 30,000t /d was added. Among them, Fujiawu mining area expanded from 15,000 t/d to 45,000 t/d, Dashan concentrator increased from 60,000 t/d to 90,000 t/d. In addition to the existing system of 60,000t /d increased by 0.7500t /d, a new semi-autogenous grinding and ball grinding system of 22,500 t/d was built in Dashan Concentrator. The system uses a Φ10.37×5.19m semi-autogenous mill (double motor drive) and a Φ7.32×10.68m ball mill (double motor drive). The motor power is 2×5586kW.

The above Φ10.37m×5.19m semi-autogenous mill and Φ7.32m×10.68m ball mill are the largest equipment produced in China and will be used soon.

3. Product parameters of ore grinding mill

Luoyang Zhongtai Industries Co., Ltd. The company was founded in 1981 and finished joint stock reform in 2005. There are eight subsidiaries and it's an independent legal entity with the qualifications of operating import & export trade.

With a garden-like industrial park and modern standard plant covering 80,000 square meters, ZTIC possesses advanced equipments, technologies and detecting methods. After more than 30 years development, the company has developed into a collectivized one with product designing, manufacture, installation and technical services as a whole. The products comprise all the equipments used in mining, cement, metallurgy, construction as well as the related accessories with high power reducer and large-sized castings & forgings, etc.

ZTIC has acquired ISO 9001:2008 Certification of conformity of Management System Certification, Mine Product Safety Authentication, Recognition for BV Mode Ⅱ Survey Scheme in France, Mining Electrical Equipment KY Certification, etc.
The company has also acquired "Fully Quality Management Achievement Award", "Top 50 Enterprises", "Henan Outstanding Innovative Enterprise” and “The Most Powerful Enterprises of Henan" in 2010.

Quality product performance and good reputation, our products have been exported to mnay countries and regions in the world, including: Russia, Serbia, Australia, Mongolia, Indonesia, Bangladesh and other countries, the products are subject to a great welcome and praise.
