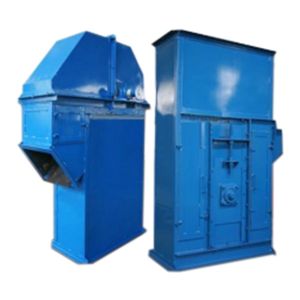

Bucket elevator is suitable for vertical transmission of powder, granular and small
block and less abrasive bulk materials, which has a small
requirement for the type of materials, characteristics and block
degrees, it can raise powder, granular and bulk materials, and
abrasive materials such as grain, coal, cement, crushed ore, etc.
It can also raise high temperature products that below 250°C with
the max height of 40m.
Product Type:
1.Ring chain bucket elevator
2.Plate chain bucket elevator
3.Belt bucket elevator
Working Principle
Belt bucket elevator is composed of machine head, main
frame,Maintenance cylinder,Ventilators, dustpan, dustpanbelt and
machine base.
The materials are fed into the machine from the bottom and
discharged from the top.
1. Firstly, the materials are evenly fed into the dustpan on the
machine base;
2. Secondly, the materials are elevated into the machine head;
3. Thirdly, the raw materials are dumped into the targeted machine.
Advantages:
Large transmission capacity. Elevate the capacity up to 15-800 cubic meters / hour.
Low energy consumption. This machine used for the flowing feed method, Gravity induced
discharging the material. And use the Intensive large capacity
hopper conveyor.
Low chain speed, but big transmission capacity, nearly no material flow back, so
small drive power, Theoretical calculation Shaft power is 25%-45%
for the Cycle chain elevator
Long use life. This kind of elevator used for the flowing feed mathod, between
the material and hit, during the feed and elevating, seldom
material will flow back, so this Prevent abrasive cost. Strengthed
wear-resistant chain enlarge the use life of the chain and hopper.
Actual use shows that: transport chain use life more than 5 years.
Lifting height high. with low speed of the chain speed, stable working, and used the
strengthed wear-resistant chain, so the lifting height is higher.
Good sealing, reduce environmental pollution.
Technical Parameters of NE Series Bucket Elevator:
| Model | Lifting capacity | Bucket | Weight of operation parts | Max. size of materials |
| (m3/h) | Volume
(L) | Bucket gap (mm) | Bucket speed
(m/min) | Percentage (%) |
| 10 | 25 | 50 | 75 | 100 |
| NE15 | 15 | 2.5 | 203.2 | 29.8 | 28 | 65 | 50 | 40 | 30 | 25 |
| NE30 | 32 | 7.8 | 304.8 | 30.1 | 35 | 90 | 75 | 58 | 47 | 40 |
| NE50 | 60 | 14.7 | 304.8 | 30.1 | 64 | 90 | 75 | 58 | 47 | 40 |
| NE100 | 110 | 35 | 400 | 31 | 89 | 130 | 105 | 80 | 65 | 55 |
| NE150 | 170 | 52.5 | 400 | 31 | 112 | 130 | 105 | 80 | 65 | 55 |
| NE200 | 210 | 84.6 | 500 | 30 | 134 | 170 | 135 | 100 | 85 | 70 |
| NE300 | 320 | 127.5 | 500 | 30 | 188 | 170 | 135 | 100 | 85 | 70 |
| NE400 | 380 | 182.5 | 600 | 30 | 205 | 205 | 165 | 125 | 105 | 90 |
| NE500 | 470 | 260.9 | 700 | 30 | 223 | 240 | 190 | 145 | 120 | 100 |
| NE600 | 600 | 300.2 | 700 | 30 | 274 | 240 | 190 | 145 | 120 | 100 |
| NE800 | 800 | 501.8 | 800 | 30 | 313 | 275 | 220 | 165 | 135 | 110 |
