100kN 5m/S Mine Hoist systems With Hydraulic Station Disc Brake

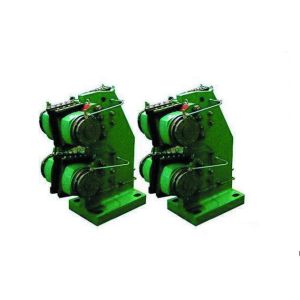

Mine Hoist With Hydraulic Station Disc Brake

Product Description

Disc brake, as the name implies is named after its shape.It is controlled by hydraulic pressure, the
main components are brake disc, pump, brake clamp, oil pipe and so on.The brake disc is made of alloy steel and fixed to the
wheel, which rotates with the wheel.Disc brakes have been widely used in cars, most cars are now used for all the wheels, a few
cars only as a front wheel brake, with the rear wheel drum brakes, so that the car has a higher braking direction stability.
Another ventilated brake disc, from the appearance, you will find that there are many from the center of the brake disc to the
edge of the hole, these holes are made by a special process, they can through the centrifugal force generated in the vehicle
driving air convection, for the brake disc cooling, played a role in preventing the thermal attenuation of the brake.

Working Principle

When braking, the oil is pressed into the inner and outer cylinder, the piston in the hydraulic action of the two brake block

pressure brake disc, friction torque and braking.At this point, the edge of the rectangular rubber seal ring in the wheel cylinder

groove produces a small amount of elastic deformation under the action of piston friction.When the brake is relaxed, the piston

and brake block depend on the elastic of the seal ring and the elastic return of the spring.Since the edge deformation of the

rectangular seal ring is very small, when not braking, the clearance between the friction disc and the disc is only about 0.1mm,

which is enough to ensure the release of the brake.And because the brake disc by thermal expansion, the thickness of only trace

changes, it will not occur "supporting hysteresis" phenomenon.In addition to sealing, the rectangular rubber sealing ring also

plays the role of piston return and automatic clearance adjustment.If the friction disc of the brake block and disc clearance wear

increases, when the brake ring deformation reached the limit, the piston can continue to move, until the friction disc compression

brake disc.After the brake is released, the rectangular rubber seal pushes the piston back the same distance as before the wear,

still maintaining the standard value.

Tower multi rope friction mine hoist

Model	Wheel diameter	Wire Rope	Max ascension speed	Reducer		Size (L×W×H)
	Wheel diameter	maximum static tension	Max ascension speed	Reducer		Size (L×W×H)
	m	kN	m/s	Model	Speed ratio	m
JKM-1.3×4(Ⅰ)E		100	5	XP550	11.5	6.4×6.5×1.6
JKM-1.6×4(Ⅰ)E		150	8	XP560	7.35 10.5 11.5	6.4×7×1.75
JKM-1.85×4(Ⅰ)E		210	10	XP800		7×7.5×2.02
JKM-2×4(Ⅰ)E	2	230 180	10	XP800		7×8×2.2
JKM-2.25×4(Ⅰ)E	2	215	10	XP800		7.4×8×2.3
JKM-2.8×4(Ⅰ)E	2.5	335	14	XP1000		8.5×10×2.65
JKM-2.8×4(Ⅱ)E	2.5	335	14	P₂H630		7.5×8.5×2.65
JKM-2.8×6(Ⅰ)E	2.5	500	14	XP1120		8×8.5×2.68
JKM-2.8×6(Ⅱ)E				P₂H800		7.5×8.5×2.68
JKM-2.8×6(Ⅲ)E						7.5×8×2.7
JKM-3.25×4(Ⅰ)E	3	450	14	XP1120	7.35 10.5 11.5	8.9×8.9×2.98
JKM-3.25×4(Ⅱ)E	3	450	14	P₂H800		8.5×8.7×2.98
JKM-3.5×6(Ⅰ)E	3	790	14	XP1250		11.5×9.2×3.15
JKM-3.5×6(Ⅱ)E				P₂H900		10.5×9.2×3.15
JKM-3.5×6(Ⅲ)E						8×9×3.2
JKM-4×4(Ⅰ)E	3.2	690	14	XP1250	7.35 10.5 11.5	9×10×3.63
JKM-4×4(Ⅱ)E				P₂H900	7.35 10.5 11.5	9×10×3.63
JKM-4×4(Ⅲ)E						7.5×9×3.63
JKM-4×6(Ⅲ)E	3.2	1030				9×9×3.63
JKM-4.5×6(Ⅲ)E	3.6	1330	16			12×9.5×3.9
JKM-5×6(Ⅲ)E	4	1600

Floor type multi rope friction mine hoist

Model	Wheel diameter	Wire Rope		Max ascension speed	Reduces		Size (L×W×H)
	Wheel diameter	maximum static tension	Max Dia	Max ascension speed	Reduces		Size (L×W×H)
	m	kN	mm	m/s	Model	Ratio	m
JKMD-2.25×2(Ⅰ)E	2.25	105	22	10	ZZP560(2)	11.5	7.7×9×2.1
JKMD-2.25×4(Ⅰ)E	2.25	215	22		XP800(2)	7.35 10.5 11.5	6.8×9.5×2.3
JKMD-2.8×2(Ⅱ)E	2.8	165	28		XP800(2)		7.8×10×2.65
JKMD-2.8×4(Ⅰ)E		335			XP1000(2)		8.5×10×2.65
JKMD-2.8×4(Ⅱ)E		335			P₂H800(2)		7.5×10×2.65
JKMD-3.5×2(Ⅰ)E	3.5	265	35		XP1000(2)		7×9.5×3.02
JKMD-3.5×4(Ⅰ)E		525		13	XP1120(2)		8.5×9.5×3
JKMD-3.5×4(Ⅱ)E					P₂H800(2)		8×9.5×3.02
JKMD-3.5×4(Ⅲ)E							7.5×9.5×3.0
JKMD-4×2(Ⅰ)E	4	340	39.5	12	XP1120(2)	7.35 10.5 11.5	8.2×10×3.4
JKMD-4×2(Ⅱ)E		340		12	P₂800(2)		7.8×10×3.4
JKMD-4×4(Ⅰ)E		680		14	XP1250(2)		11×10×3.4
JKMD-4×4(Ⅱ)E					P₂H900(2)		10.5×10×3.4
JKMD-4×4(Ⅲ)E							8.1×8.7×3.4
JKMD-4.5×4(Ⅲ)E	4.5	900	45				9.5×9.5×3.7
JKMD-5×4(Ⅲ)E	5	1070	50				9.5×10×4
JKMD-5.5×4(Ⅲ)E	5.5	1300	55				11×10.5×4.5
JKMD-5.7×4(Ⅲ)E	5.7	1500	57
JKMD-6×4(Ⅲ)E	6	1570	57				11×10.5×4.5

Single-Sope Winding Mining Hoist

Model	Drum			Tension PF	Tension Differe (KN	Rope Diameter (mm)	Capatiy(m)			Max Speed	Reduce speed ratio	Motor Speed
	n u m b e r	Dia	Widlth				One-laye	Two-laye	Three-laye

		m		kN		mm	m			m/s		r/min
JK-2×1.5/20	1	2.0	1.5	62		24	305	650	1025	5.2	20.0	1000
JK-2×1.5/31.5											31.5
JK-2×1.8/20			1.80				375	797	1246		20.0
JK-2×1.8/31.5											31.5
JK-2.5×2/20		2.5	2.00	83		28	448	945	1475	5.0	20.0	750
JK-2.5×2/31.5											31.5
JK-2.5×2.3/20			2.30				525	1100	1712		20.0
JK-2.5×2.3/31.5											31.5
JK-3×2.2/20		3.0	2.20	135		36	458	966	1513	6.0	20.0
2JK-2×1/11.2	2	2.0	1.00	62	40	24	182	406	652	7.0	11.2
2JK-2×1/20											20.0
2JK-2×1/31.5											31.5
2JK-2×1.25/11.2			1.25				242	528	838		11.2
2JK-2×1.25/20											20.0
2JK-2×1.25/31.5											31.5
2JK-2.5×1.2/11.2		2.5	1.20	83	65	28			843	8.8	11.2
2JK-2.5×1.2/20											20.0
2JK-2.5×1.2/31.5											31.5
2JK-2.5×1.5/11.2		2.5	1.50	83	65	28	319	685	1080	8.8	11.2
2JK-2.5×1.5/20											20.0
2JK-2.5×1.5/31.5											31.5
2JK-3×1.5/11.2		3.0		135	90	36	289	624	994	10.5	11.2
2JK-3×1.5/20											20.0
2JK-3×1.5/31.5											31.5
2JK-3×1.8/11.2			1.80				362	770	1217		11.2
2JK-3×1.8/20											20.0
2JK-3×1.8/31.5											31.5
2JK-3.5×1.7/11.2		3.5	1.70	170	115	40	349	746	-	12.6	11.2
2JK-3.5×1.7/20											20.0
2JK-3.5×2.1/11.2			2.10				450	950	-		11.2
2JK-3.5×2.1/11.2											20.0
2JK-4×2.1/10		4.0		245	160	48	421	891	-	12.6	10.0	600
2JK-4×2.1/11.2											11.2
2JK-4×2.1/20											20.0
2JK-5×2.3/10		5.0	2.30	280	180	52	533	-	-	12	10.0	500
2JK-5×2.3/11.2											11.2
